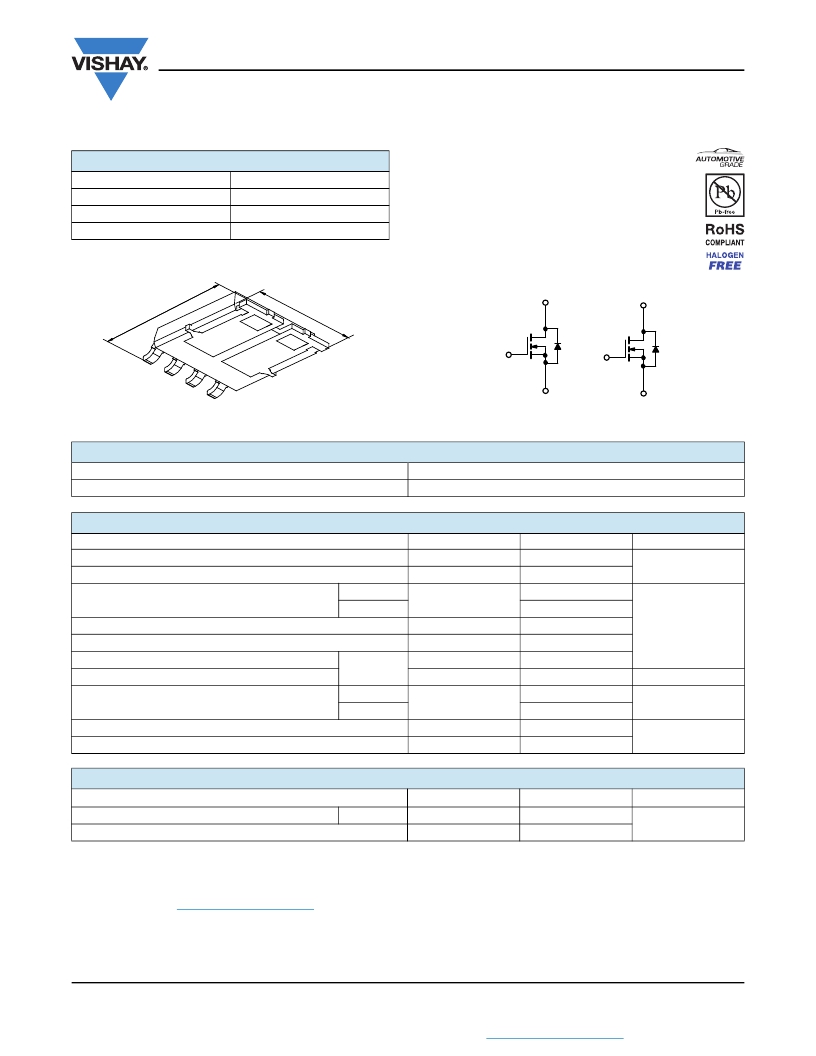

SQJ964EP
www.vishay.com
Vishay Siliconix
Automotive Dual N-Channel 60 V (D-S) 175 °C MOSFET
PRODUCT SUMMARY
FEATURES
? Halogen-free According to IEC 61249-2-21
V DS (V)
R DS(on) ( Ω ) at V GS = 10 V
I D (A) per leg
Configuration
60
0.028
8
Dual
Definition
? TrenchFET ? Power MOSFET
? AEC-Q101 Qualified d
? 100 % R g and UIS Tested
? Compliant to RoHS Directive 2002/95/EC
PowerPAK ? S O-8L Dual
6.1
5
mm
5 . 1
3m
m
D 1
D 2
D
2
D
1
G 1
G 2
4
G 2
S 2
3
2
G 1
1
S 1
Bottom View
S 1
N-Channel MOSFET
S 2
N-Channel MOSFET
ORDERING INFORMATION
Package
Lead (Pb)-free and Halogen-free
PowerPAK SO-8L
SQJ964EP-T1-GE3
ABSOLUTE MAXIMUM RATINGS (T C = 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
SYMBOL
V DS
V GS
LIMIT
60
± 20
UNIT
V
Continuous Drain Current a
T C = 25 °C
T C = 125 °C
I D
8
8
Continuous Source Current (Diode Conduction) a
I S
8
A
Pulsed Drain
Current b
I DM
32
Single Pulse Avalanche Current
Single Pulse Avalanche Energy
Maximum Power Dissipation b
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature) e, f
L = 0.1 mH
T C = 25 °C
T C = 125 °C
I AS
E AS
P D
T J , T stg
25
31
35
11
- 55 to + 175
260
mJ
W
°C
THERMAL RESISTANCE RATINGS
PARAMETER
SYMBOL
LIMIT
UNIT
Junction-to-Ambient
Junction-to-Case (Drain)
PCB Mount c
R thJA
R thJC
85
4.2
°C/W
Notes
a. Package limited.
b. Pulse test; pulse width ≤ 300 μs, duty cycle ≤ 2 %.
c. When mounted on 1" square PCB (FR-4 material).
d. Parametric verification ongoing.
e. See solder profile ( www.vishay.com/doc?73257 ). The PowerPAK SO-8L. The end of the lead terminal is exposed copper (not plated) as a
result of the singulation process in manufacturing. A solder fillet at the exposed copper tip cannot be guaranteed and is not required to
ensure adequate bottom side solder interconnection.
f. Rework conditions: manual soldering with a soldering iron is not recommended for leadless components.
S11-2419-Rev. B, 19-Dec-11
1
Document Number: 65167
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
